| BS-65 6.5" Mid Range Driver |
| |
| |
|
Features
- Paper cone with Cloth Edge.
- Die-cast Frame
- Aluminum bullet dust cap
- 1.5" High temperature CCAW Voice Coil Diameter
- Diameter size (inchs) : 6.5"
- Magnet Weight(oz) :30
- Total Power handling RMS/Max : 120W/240W
- Sensitivity(dB) : 94dB
|
| Smooth, Low-Distortion Mid-Range/Mid-Bass output for the highest Quality sound enforcement application. |
| |
| Model |
BS-65 |
| Diameter Size (inches) |
6.5” |
| Max Power Handling (watts) |
240W |
| RMS Continous Power Handling |
120W |
| Nominal Impedance (Ohm) |
8 Ohm |
| Frequency Response (Hz) |
100Hz-18KHz |
| Fs (Hz) |
40 |
| VAS (Liters) |
13 |
| Qts. |
0.43 |
| Qms. |
14.91 |
| Xmax (mm) |
10 |
| Sensitivity (dB) |
94 |
| Magnet Weight (oz.) |
30 |
| Sealed Box Size |
0.6 cu.ft |
| Ported Box Size |
0.5 cu.ft |
| MSRP |
$63 |
|
 |
| BS-65NH 6.5" Mid Range Driver Neodymium And Strontium Hybrid Magnet |
| |
| |
|
|
Features
- Paper cone with foam edge
- Die-cast aluminum basket
- Aluminum bullet dust cap
- 1.5”High temperature CCAW Voice Coil Diameter
Installation Notes
- Use your fader to adjust from front to rear to
get the best possible sound.
- Pay close attention when wiring your BS-65NH speakers
If wired out of phase, sound quality will suffer.
|
| Smooth, Low-Distortion Mid-Range/Mid-Bass output for the highest Quality sound enforcement application. |
| |
| Model |
BS-65NH |
| Diameter Size (inches) |
6.5” |
| Magnet Weight(oz): |
16 OZ magnet + 1.2 OZ neodymium magnet (NB) |
| Total Power handling RMS/Max |
120W / 240W |
| Net Weight |
1.5 Kg |
| Nominal Impedance |
8 ohm |
| Sensitivity (dB) |
94 dB |
| Frequency Range |
100 Hz - 18 KHz |
| Flux Density |
1.5T |
| MSRP |
NA |
|
|

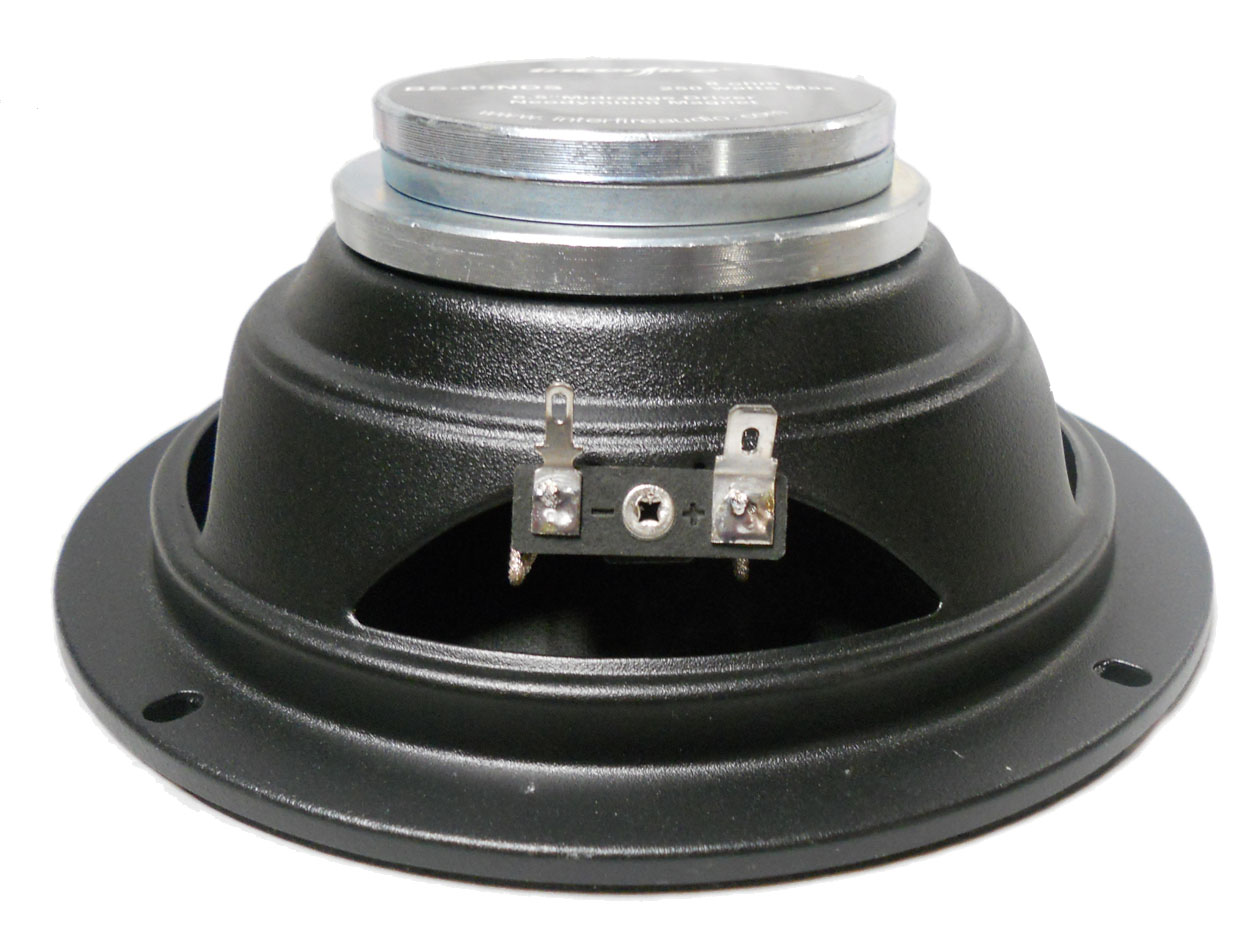

| BS-65NDS 6.5" Mid Range Driver Neodymium Magnet |
| |
| |
|
|
Features
- Paper cone with foam edge
- Stamped Steel basket
- Aluminum bullet equalizer
- Neodymium Magnet
- 1.5" High temperature CCAW Voice Coil Diameter
- Diameter size (inchs) 6.5"
- Magnet Weight(oz) : 3.4oz neodumium magnet
- Total Power handling RMS/Max : 125W/250W
- Nominal Impedance : 8ohm
- Sensitivity(dB) : 100 dB
|
| Smooth, Low-Distortion Mid-Range/Mid-Bass output for the highest Quality sound enforcement application. |
| |
| Model |
BS-65ND |
| Diameter Size (inches) |
6.5” |
| Max Power Handling (watts) |
250W |
| RMS Continous Power Handling |
125W |
| Nominal Impedance (Ohm) |
8 Ohm |
| Frequency Response (Hz) |
100Hz-18KHz |
| Fs (Hz) |
40 |
| VAS (Liters) |
13 |
| Qts. |
0.43 |
| Qms. |
14.91 |
| Xmax (mm) |
10 |
| Sensitivity (dB) |
100dB |
| Magnet Weight (oz.) |
3.4oz |
| Sealed Box Size |
0.6 cu.ft |
| Ported Box Size |
0.5 cu.ft |
| MSRP |
$87 |
|
|
| IFM-065 6.5" Mid Range Driver |
| |
| |
|
|
Features
- Diameter size (inches) 6.5" mid range driver
- Press paper cone with cloth edge.
- Vented steel metal frame
- 23oz strontium ferrite magnet
- 1.5" (38mm) high temperature kapton voice coil
- Total power handling RMS/Max: 100W/220W
- Nominal impedance: 8ohm
- Sensitivity(dB): 93dB
|
| Smooth, Low-Distortion Mid-Range/Mid-Bass output for the highest Quality sound enforcement application. |
| |
| Model |
IFM-065 |
| Max Power Handling (watts) |
220W |
| RMS Continous Power Handling |
110W |
| Nominal Impedance (Ohm) |
8 Ohm |
| Frequency Response (Hz) |
117 Hz-5.5 Khz |
| Sensitivity |
93.3 dB |
| Magnet |
High Grade 23oz magnet |
| Voice Coil |
38mm KSV type |
| Frame |
Metal Stamped Baket Frame |
| Cone |
Paper with Multi Cloth Surround Edge |
| QMS |
5.845 |
| X Max (mm) |
0.2 m/m |
| Sealed Box Size |
0.18 cu.ft (7x7x6.5) inch |
| Ported Box Size |
0.32 cu.ft (7x7x11.3) inch |
| Ported Size - Diameter |
3” type, Length: 6” long |
| MSRP |
$66 |
|
|

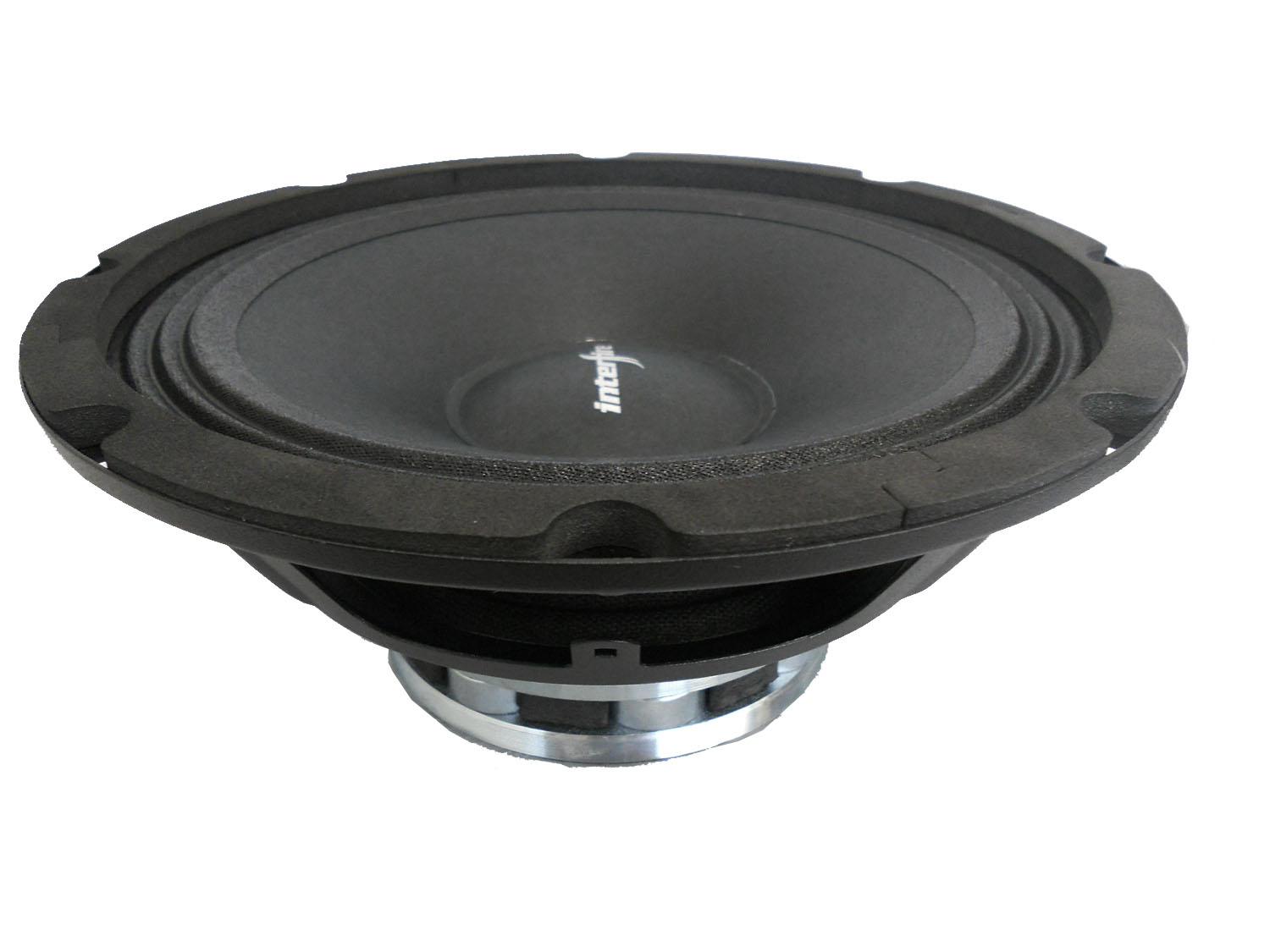

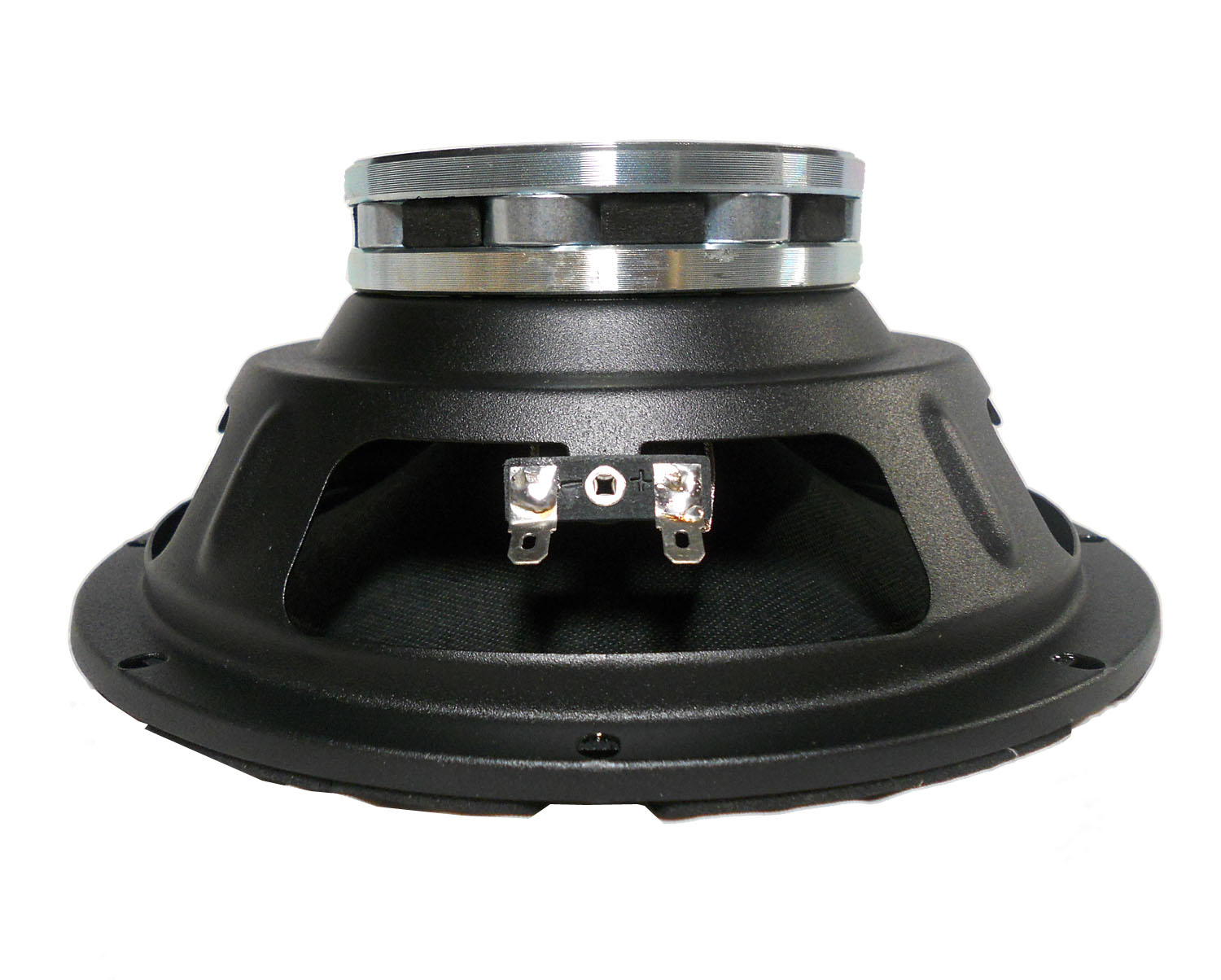

| IFM-088ND 8" Midrange Driver Neodymium Magnet |
|
|
|
Features
- Diameter size (inches) 8" mid range driver
- Press paper cone with cloth edge
- Stamped Steel Basket
- 5.6oz Neodymium Magnet (ND)
- 1.5" (38mm) high temperature kapton voice coil
- Total power handling RMS/Max: 150W/400W
- Nominal impedance: 8ohm
- Sensitivity(dB): 100dB
|
| Smooth, Low-Distortion Mid-Range/Mid-Bass output for the highest Quality sound enforcement application. |
| |
| Model |
IFM-088 |
| Diameter Size (inches) |
8” |
| Max Power Handling (watts) |
400W |
| RMS Continous Power Handling |
150W |
| Nominal Impedance (Ohm) |
8 Ohm |
| Frequency Response (Hz) |
90HZ-18Khz |
| Fs (Hz) |
40 |
| VAS (Liters) |
13 |
| Qts. |
0.43 |
| Qms. |
14.91 |
| Xmax (mm) |
10 |
| Sensitivity (dB) |
100dB |
| Magnet Weight (oz.) |
33 o |
| Sealed Box Size |
0.8 cu.ft |
| Ported Box Size |
0.9 cu.ft |
| MSRP |
$83.00 / pc |
|
|

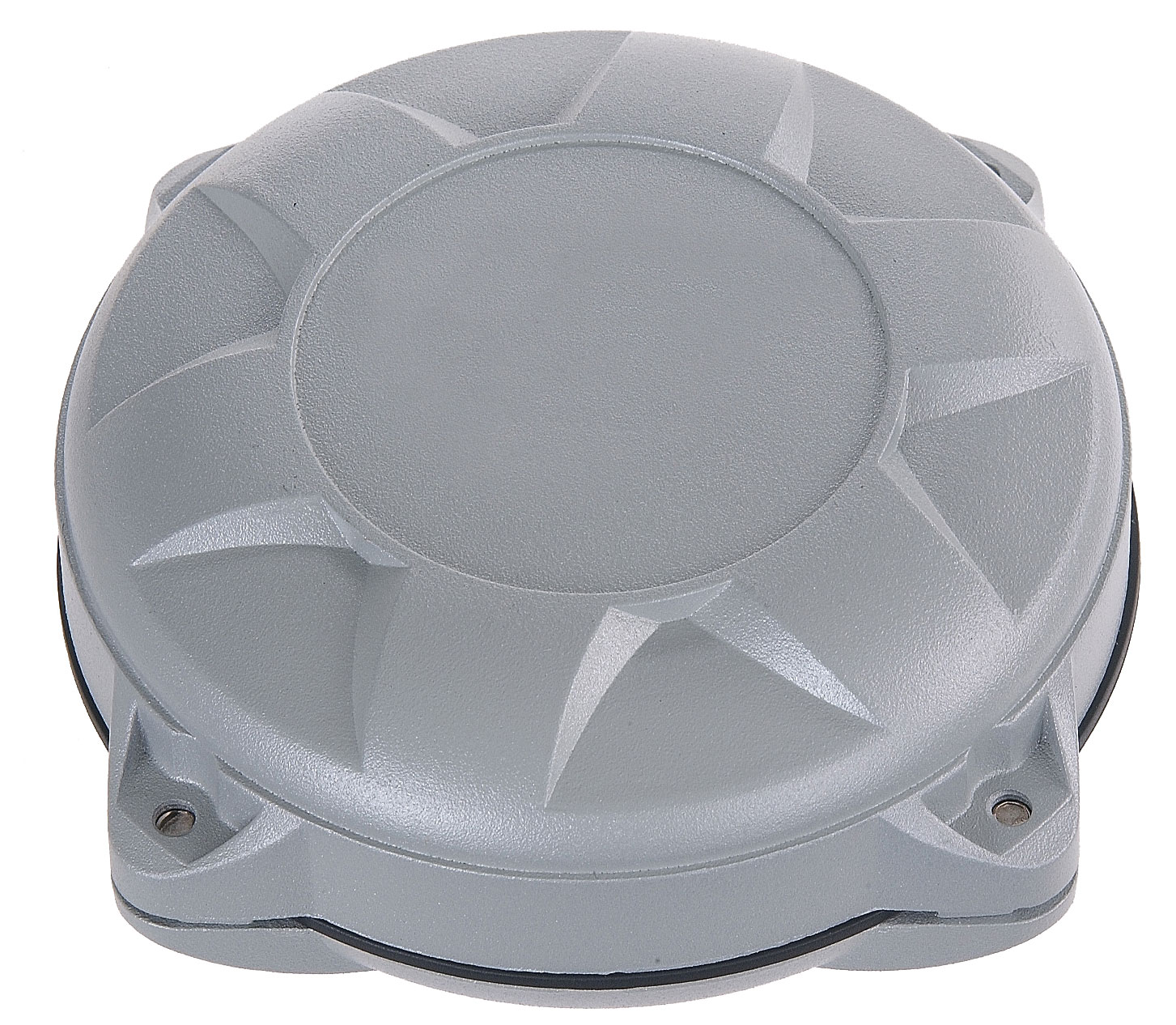

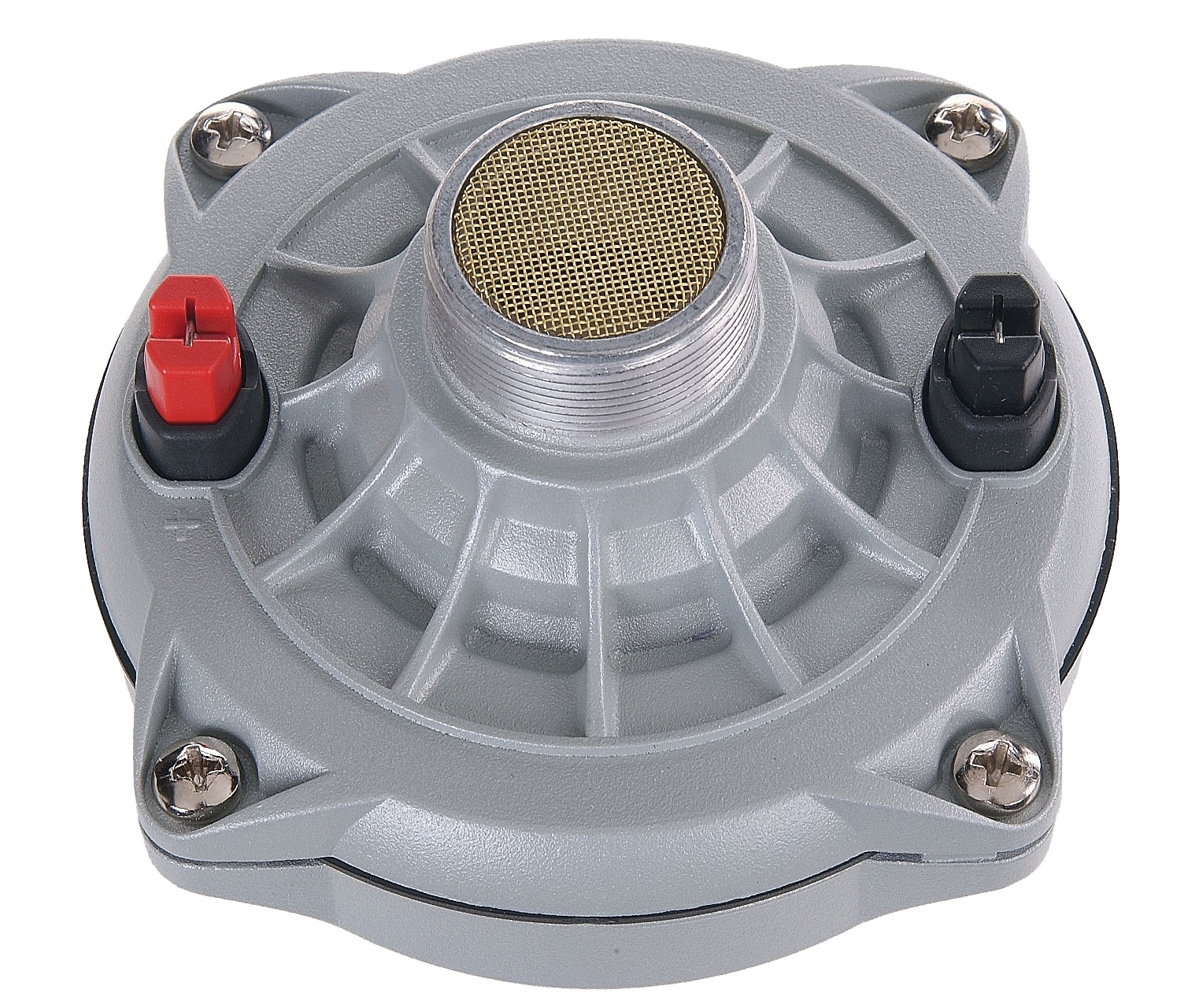

| IF-HD250 Horn Driver |
| |
| |
|
|
Features
- Magnet material: Barium ferrite
- Housing material: Aluminum
- Voice coil material: Copper
- Voice former material: Kapton
- 33oz strontium ferrite magnet
Mounting Information
- Horn connection: Thread 1 3/8"
- Connectors: Push terminals
- Polarity: Positive voltage applied to the positive terminal (red) gives diaphragm motion toward the throat.
|
| |
| Model |
IF-D250 |
| Peak Power handling |
200 Watts |
| Continuous Powe (RMS) |
100 Watts |
| Nominal Impedance |
8 Ohm |
| Magnet Weight |
11.7 oz |
| Sensitivity (1W/m) |
107 dB |
| Frequency Response |
400Hz - 9,000Hz |
| Voice Coil Diameter |
51mm (2 inch) |
| Diaphragm material |
Phenolic |
| Throat diameter |
25mm (1 inch) |
| MSRP |
N/A |
|
|
|
|
