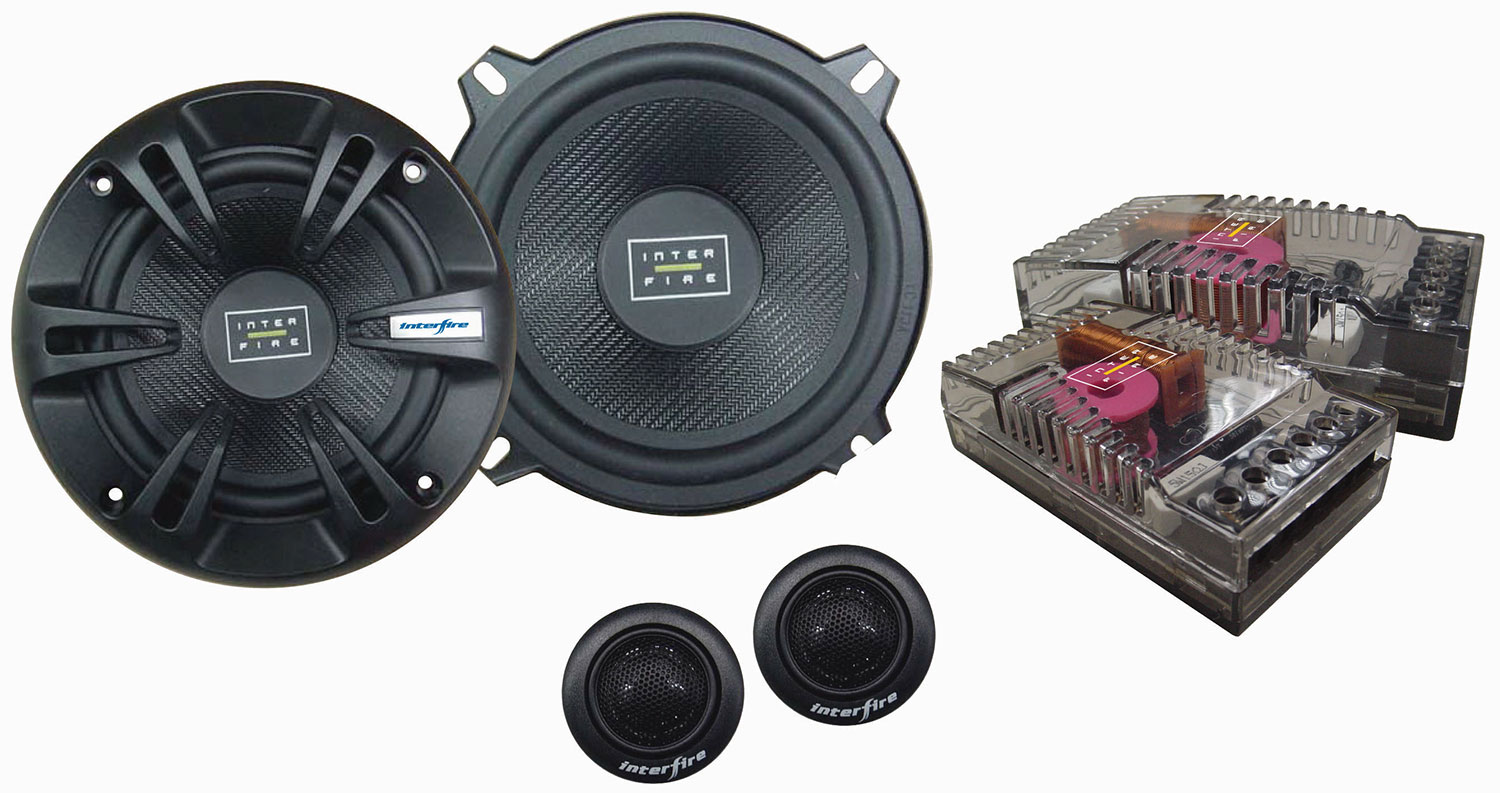

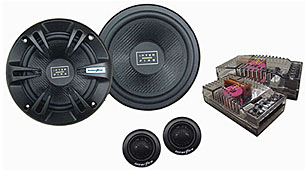

Tweeter IFC-525

Super clean... Super clear
All the IFC series components come with high power 2-way crossover networks. These crossover networks have been painstakingly designed to match the performance characteristics of the IFC series speakers. The results are crisp, clean highs and transparent midrange with no audible dips. With the IFC series components, you get beautiful music reproduction from 40 Hz to 25 kHz. All IF & IFC series component tweeters come with both angled surface and flush mount kits, giving you plenty of installation possibilities to achieve near perfect imaging.

All IFC series midrange speaker feature Interfire's own innovative cone design. These IFC series component midrange speakers feature heavy gauge polypropylene cones along with soft dust caps. While the thick injected polypropylene cone produces excellent low midrange frequencies, the soft dome dust cap naturally produces the upper midrange frequencies. The result is a smooth, natural, linear sound production.

Features
  • 1" ASV High Temperature Voice Coil
  • Rubber Surround
  • Magnet: Barium Ferrite
  • Vented Pole Piece
  • Heavy Gauge Polypropylene Cone with Soft Dust Cap
  • High Power 12dB per Oct. Crossover Networks

Model IFC-525
Description 5.25 Component
Total max Power Handling 300W
Total Continous Power 150W
Woofer 5.25”
Tweeter 1“ Titanium
Tweeter Mounting F.AS
Impedance 4 Ohm
Freq. Response 50Hz-25KHz
Sensitivity (1W/1m) 91
Voice Coil 1” ASV
Mounting Depth 2 1/8” (53mm)
Surround Rubber
Passive Crossover 2-Way
MSRP $201

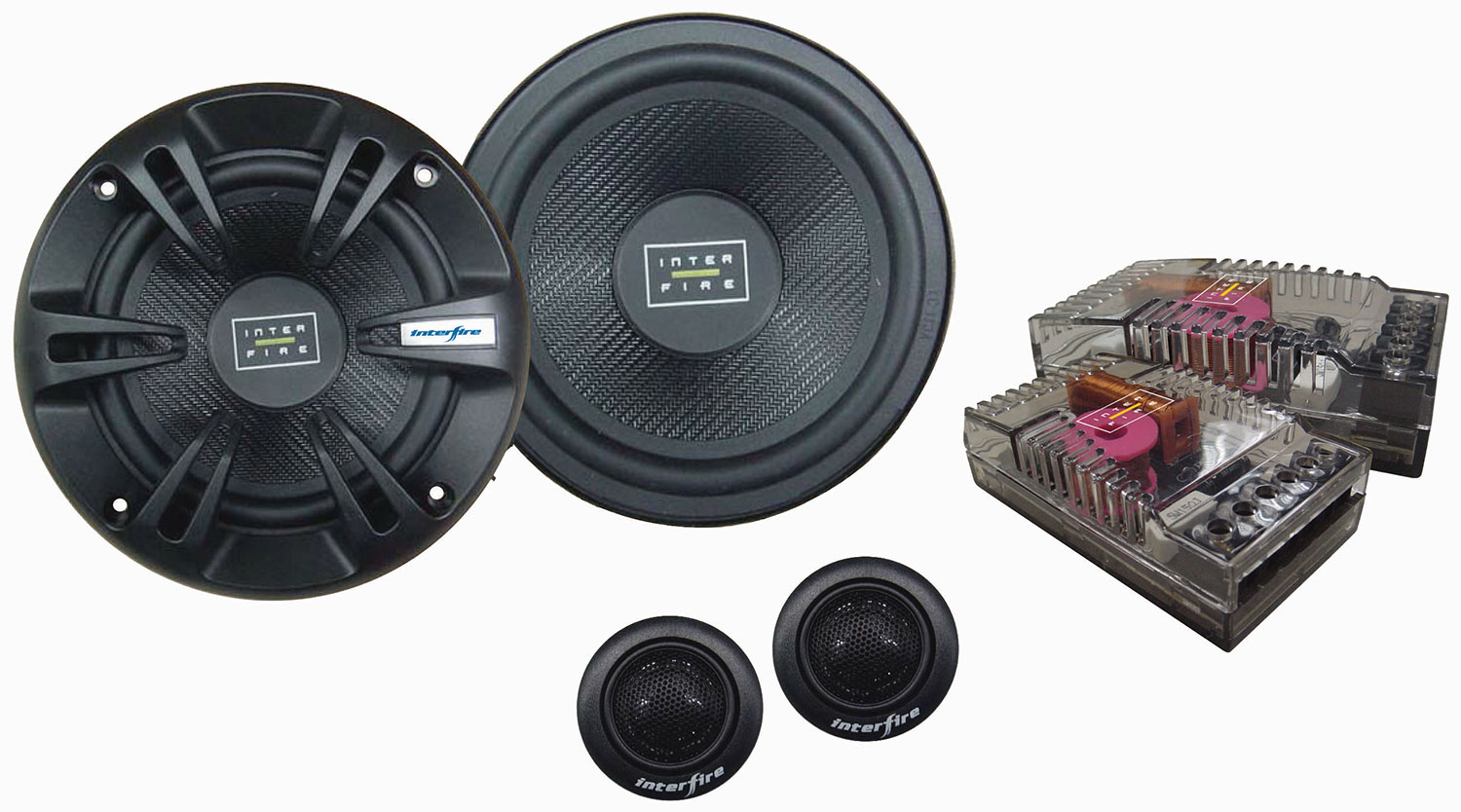

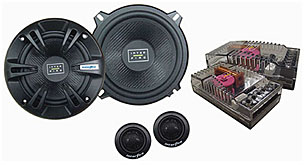

Tweeter IFC-650

Super clean... Super clear
All the IFC series components come with high power 2-way crossover networks. These crossover networks have been painstakingly designed to match the performance characteristics of the IFC series speakers. The results are crisp, clean highs and transparent midrange with no audible dips. With the IFC series components, you get beautiful music reproduction from 40 Hz to 25 kHz. All IF & IFC series component tweeters come with both angled surface and flush mount kits, giving you plenty of installation possibilities to achieve near perfect imaging.

All IFC series midrange speaker feature Interfire's own innovative cone design. These IFC series component midrange speakers feature heavy gauge polypropylene cones along with soft dust caps. While the thick injected polypropylene cone produces excellent low midrange frequencies, the soft dome dust cap naturally produces the upper midrange frequencies. The result is a smooth, natural, linear sound production.

Features
  • 1" ASV High Temperature Voice Coil
  • Rubber Surround
  • Magnet: Barium Ferrite
  • Vented Pole Piece
  • Heavy Gauge Polypropylene Cone with Soft Dust Cap
  • High Power 12dB per Oct. Crossover Networks

Model IF-650
Description 6.5 Component
Total max Power Handling 350W
Total Continous Power 175W
Woofer 6.5”
Tweeter 1“ Titanium
Tweeter Mounting F.AS
Impedance 4 Ohm
Freq. Response 40Hz-25KHz
Sensitivity (1W/1m) 91
Voice Coil 1” ASV
Mounting Depth 2 3/8” (59mm)
Surround Rubber
Passive Crossover 2-Way
MSRP $216

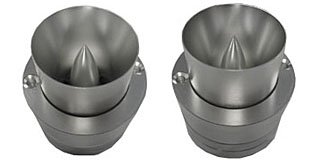

Tweeter IF-T50 1" Titanium Super Bullet Tweeter

Super clean... Super clear
All the IFC series components come with high power 2-way crossover networks. These crossover networks have been painstakingly designed to match the performance characteristics of the IFC series speakers. The results are crisp, clean highs and transparent midrange with no audible dips. With the IFC series components, you get beautiful music reproduction from 40 Hz to 25 kHz. All IF & IFC series component tweeters come with both angled surface and flush mount kits, giving you plenty of installation possibilities to achieve near perfect imaging.

All IFC series midrange speaker feature Interfire's own innovative cone design. These IFC series component midrange speakers feature heavy gauge polypropylene cones along with soft dust caps. While the thick injected polypropylene cone produces excellent low midrange frequencies, the soft dome dust cap naturally produces the upper midrange frequencies. The result is a smooth, natural, linear sound production.

    Features
  • 1” Titanium Super Bullet Tweeter
  • Die Cast Aluminum Frame
  • Diamond Chrome Cutting Finish
  • 1 1/4” High Temperature Voice Coil
  • 110 watts RMS Power - 220 watts Peak Power
  • 4 ohm Impedance - Sensitivity: 108dB
  • Frequency Response: 2K-23Khz

Model IF-T50
Description 1.1” Component
Total Max Power Handling 220W
Total Continous Power 110W
Woofer N/A
Tweeter 1.1“ Bullet
Tweeter Mounting F.AS
Impedance 4 Ohm
Freq. Response 2-23 KHz
Sensitivity (1W/1m) 108 dB
Voice Coil 1.1”/28mm
Mounting Depth 0.69” (18mm)
Surround N/A
Passive Crossover High-Pass
MSRP $192


Tweeter IF-T20

Super clean... Super clear
All the IFC series components come with high power 2-way crossover networks. These crossover networks have been painstakingly designed to match the performance characteristics of the IFC series speakers. The results are crisp, clean highs and transparent midrange with no audible dips. With the IFC series components, you get beautiful music reproduction from 40 Hz to 25 kHz. All IF & IFC series component tweeters come with both angled surface and flush mount kits, giving you plenty of installation possibilities to achieve near perfect imaging.

All IFC series midrange speaker feature Interfire's own innovative cone design. These IFC series component midrange speakers feature heavy gauge polypropylene cones along with soft dust caps. While the thick injected polypropylene cone produces excellent low midrange frequencies, the soft dome dust cap naturally produces the upper midrange frequencies. The result is a smooth, natural, linear sound production.

Features
  • Cast housing for both flush & base mount
  • Soft silk dome
  • 1.1" (28mm) ASV voice coil
  • High pass crossover circuit with high quality polyester film capacitor 12dB/Octave, one-way tweeter gain control(0dB/-3dB) Tweeter frequency control(3Hz/6Hz)

Model IF-T20
Description 1.1” Tweeter
Total max Power Handling 220W
Total Continous Power 110W
Woofer N/A
Tweeter 1.1“ Silk
Tweeter Mounting F.AS
Impedance 4 Ohm
Freq. Response 2KHz-22KHz
Sensitivity (1W/1m) 90
Voice Coil 1.1”/28 mm
Mounting Depth 0.69” (18mm)
Surround N/A
Passive Crossover High-Pass
MSRP $102

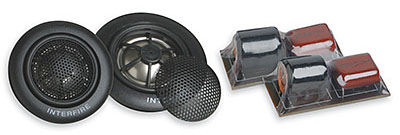

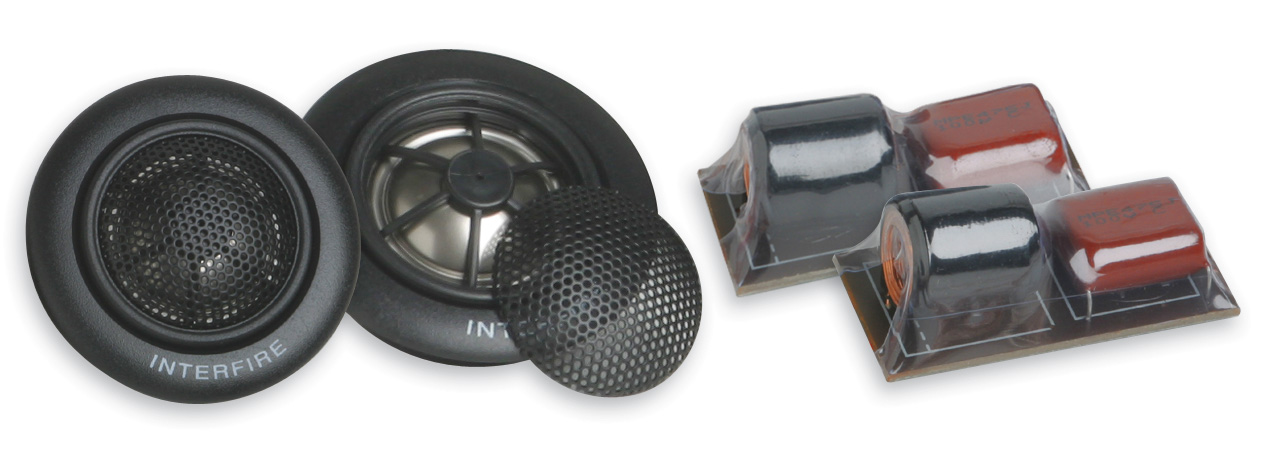

Tweeter IF-T10

Super clean... Super clear
All the IFC series components come with high power 2-way crossover networks. These crossover networks have been painstakingly designed to match the performance characteristics of the IFC series speakers. The results are crisp, clean highs and transparent midrange with no audible dips. With the IFC series components, you get beautiful music reproduction from 40 Hz to 25 kHz. All IF & IFC series component tweeters come with both angled surface and flush mount kits, giving you plenty of installation possibilities to achieve near perfect imaging.

All IFC series midrange speaker feature Interfire's own innovative cone design. These IFC series component midrange speakers feature heavy gauge polypropylene cones along with soft dust caps. While the thick injected polypropylene cone produces excellent low midrange frequencies, the soft dome dust cap naturally produces the upper midrange frequencies. The result is a smooth, natural, linear sound production.

Features
  • 1" Titanium Dome Tweeter
  • 1" High Temperature Voice Coil
  • Magnet: Neodymium
  • Flush / Angled Surface Mounting Options
  • High Power Outboard 12dB per Oct. Crossover
  • Networks included (3.5kHz-25kHz)

Model IF-T10
Description 1” Tweeter
Total max Power Handling 200W
Total Continous Power 100W
Woofer N/A
Tweeter 1“ Titanium
Tweeter Mounting F.AS
Impedance 4 Ohm
Freq. Response 2KHz-22KHz
Sensitivity (1W/1m) 92
Voice Coil 1”
Mounting Depth 1/2” (13mm)
Surround N/A
Passive Crossover High-Pass
MSRP $87
